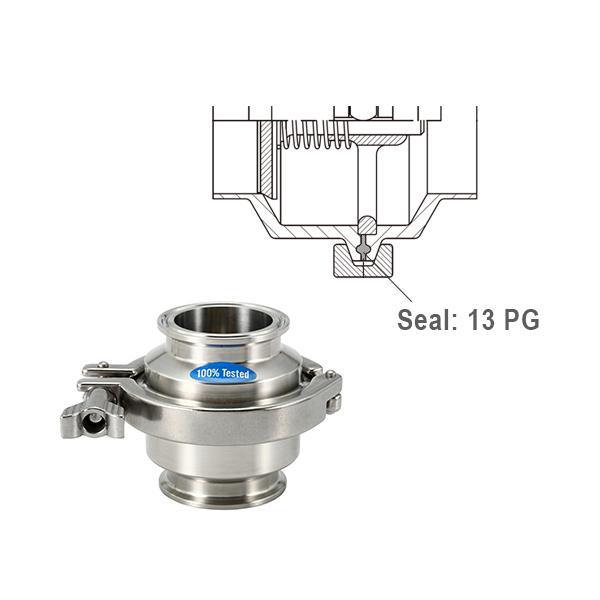

PG type check valve

PG type check valve

More Details



Product ID: P43_Sanitary Check Valve

• Horizontal check valve/ Non-return valve

o The best check valve type of the piping or tubing system for drainage installation.

With six-leg central stem designed to be installed in a horizontal tubing system without the risk of incomplete on/off due to incorrect stem angles.

The valve of horizontal tube can facilitate emptying and make system zero residual , maintaining hygiene and purity in the pipeline system.

• Vertical check valve/ Non-return valve

o Vertical design to prevent reverse flow under strict high purity system.

The valve closes/opens, when the spring pressure exceeds the pressure under the flow plate, .

The material of valve 316L stainless steel valve body and seat, which can be quickly disassembled or installing through sanitary clamp design.

Product specifications

• Material:

o Body/Steam : ASMT SS316L

o Seal: EPDM, Silicone, Viton(FKM),PTFE

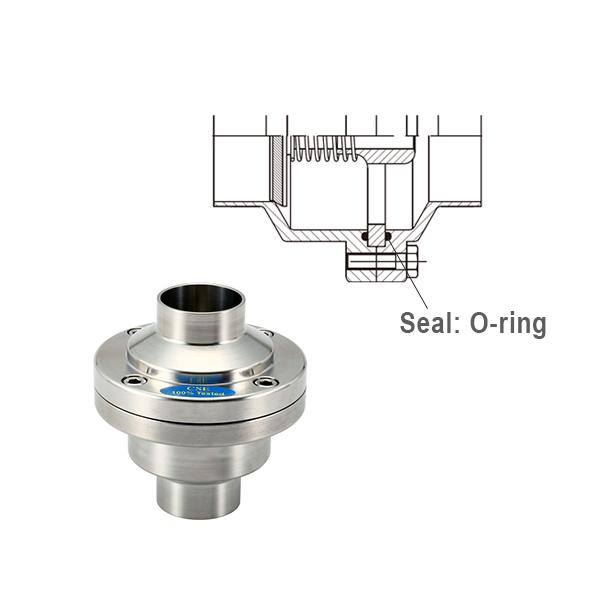

• Connection method:

o Welded end

o Clamp end

• Standard:

o 3A

o SMS

oBS

o DIN

• Open pressure:
