DIN Ferrule

DIN Ferrule

DIN Ferrule

Product ID: P116_ Sanitary Ferrules

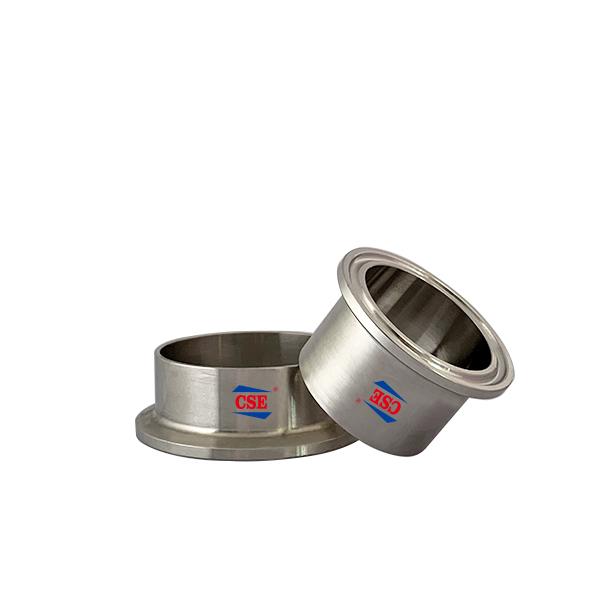

DIN sanitary food grade ferrules are a series of sanitary pipe clamp ferrules used to connect the clamp joint end with the permanent welding end on the sanitary production line. CSE also provides long welding clamp ferrules for the assembly line. Welding capacity provides additional space. In addition, three lengths of 14 WMP/ 14 MMP/ 14 AMP are provided for customers to configure in the production line.

The materials is offered for food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries. It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required. Sanitary DIN Ferrules that CSE offers are made by forged.
The DIN Ferrules could be conformed with DIN Blank End Cap which is made by solid bar, Clamp and other Adapters.

Product specifications:

  • Material grade:
    • Stainless steel: 304, 316, 316L
    • Gasket: EPDM, SILICON, VITON
  • Size Range:
    • German regulations: DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150
    • British system: 1",1.5",2",3",4"
  • Standard:
    • DIN 11851, DIN11864
  • Applications:
    • food, beverages, dairy products, pharmaceuticals, beer, etc.

Ferrule Download Now !
Order Information:
  • Minimum Order: Negotiable
  • FOB: Keelung
