IDF Sight Glass

IDF Sight Glass

Product ID: P36

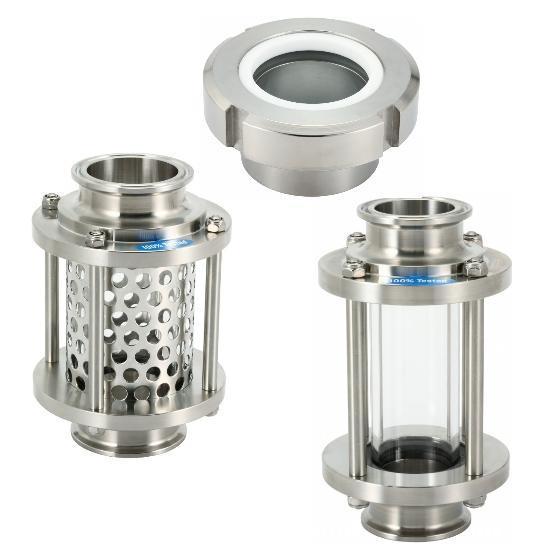

Our IDF hygienic sight glass products are made by forged material.
Type of ends available: Weld end, Male end and Female end.
Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.
Screw Blot: Full Stainless Steel.
EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.
It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

Specifications:

Material grade:
- 304, 316L
Seal(Gasket):
- EPDM, SILICON, VITON, PTFE
Size range:
- 1", 1.5", 2", 2.5", 3", 4"
Type of ends available:
- Weld end, Male end and Female end.
Wide-range application:
- For food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.

Order Information:

Minimum Order: Negotiable
FOB: Keelung
